Inputs & Actions

The four input types, the eleven action types a button or a click can run, and the conditions that gate them.

Inputs

A page's inputs block adds fields the player can fill in before pressing a button. Every button on that page submits every input on it, so a save button reads back whatever is on screen at the time.

The four input types as small mockups: a text field, a ticked toggle, a slider partway across its range, and an open dropdown, each labelled with its config type value.

All four on the shipped settings menu. The Chat page carries a text field and a dropdown, the Notifications page two toggles and a slider, and the Save button on each submits everything on it:

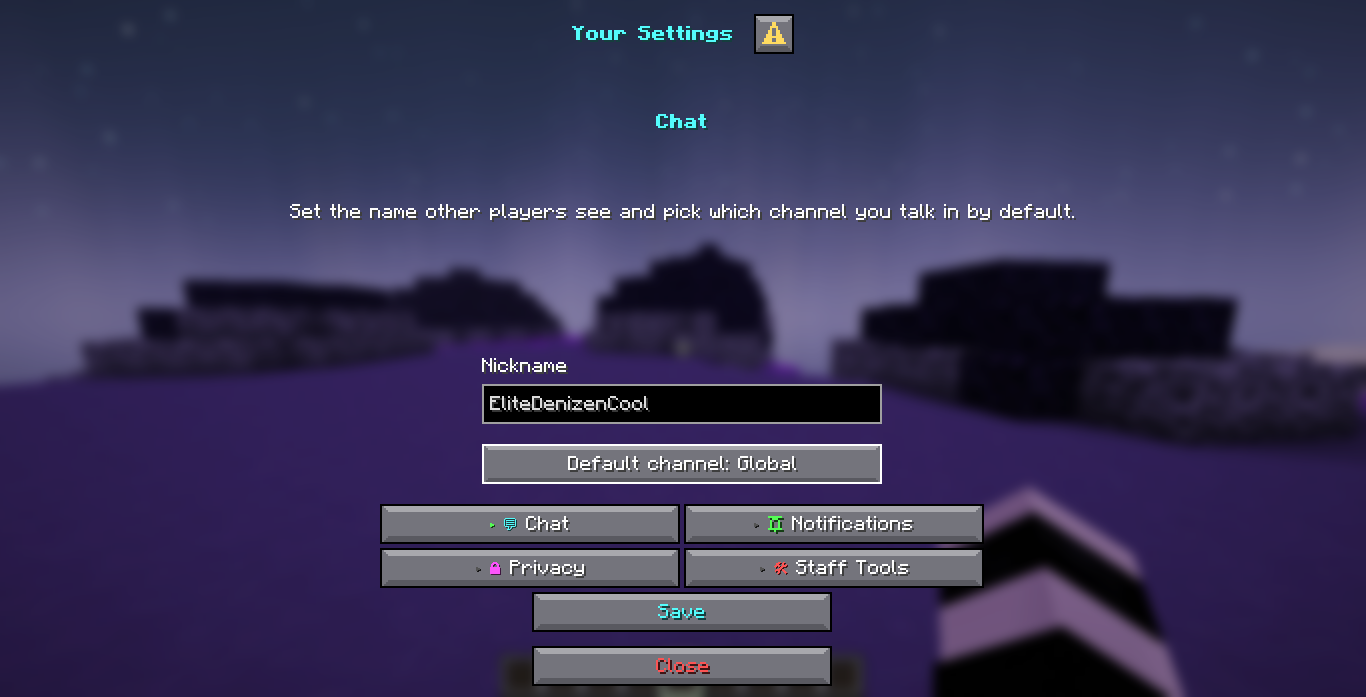

The Chat page of the shipped settings menu: a text field labelled Nickname holding EliteDenizenCool, a dropdown reading Default channel: Global, the four category buttons, a Save button and a Close button.

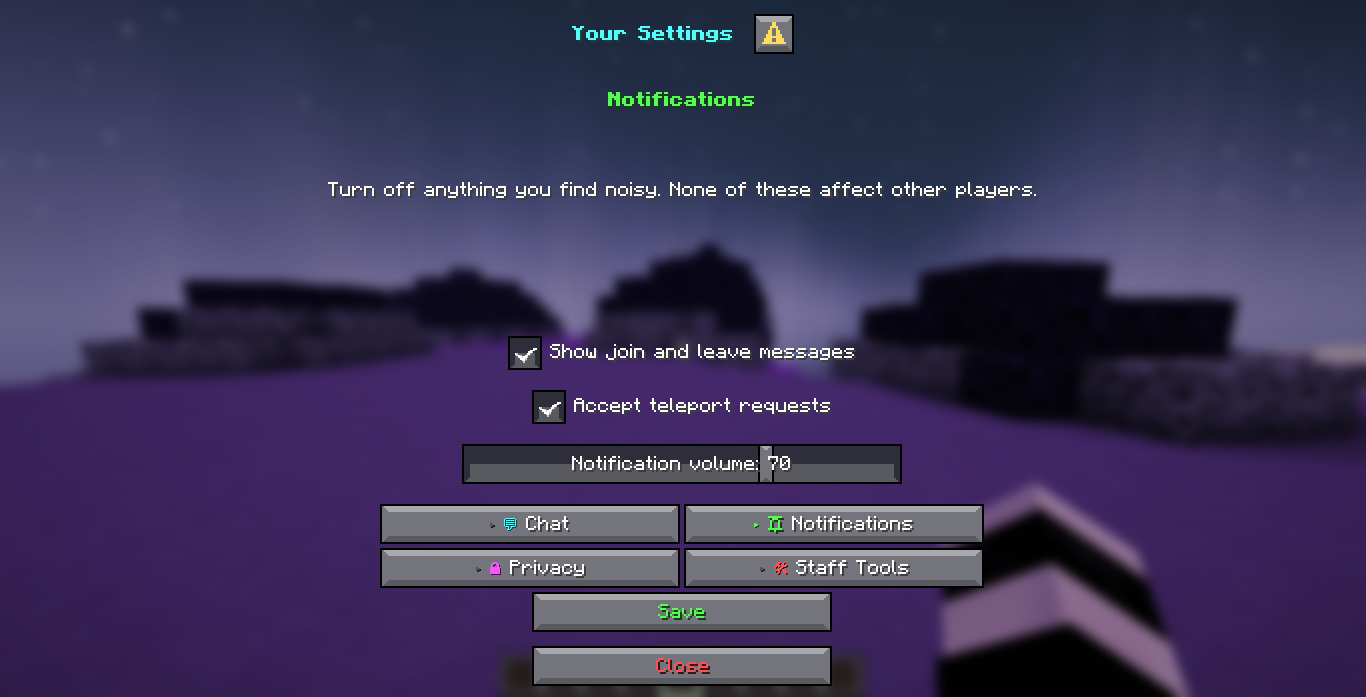

The Notifications page of the shipped settings menu: two ticked toggles reading Show join and leave messages and Accept teleport requests, a slider reading Notification volume: 70, the four category buttons, a Save button and a Close button.

inputs:
  nickname:
    type: text
    label: '<white>Nickname</white>'
    initial: ''
    max-length: 16
    width: 200
    persist: true

nickname:
  type: text
  label: '<white>Nickname</white>'
  initial: ''
  max-length: 16
  width: 200
  persist: true

A single line of free text, read back with getText.

persist: true saves the value per player, per menu and per page, so it comes back the next time the menu is opened. An input key can only hold letters, digits and underscores, because a dialog input becomes a command macro variable under the hood and Paper rejects anything else while the dialog is being built.

Reading a value back

$(input_key) inside a message, notice or command action is replaced with what the player has on screen for that key:

- type: notice
  value: '<aqua>Saved. Channel is now <white>$(channel)</white>.</aqua>'

Actions

A button, or a shortcut page's own actions list, runs one or more of eleven action types in order.

Every button carries a token rather than the action itself, and DialogForge looks the token up in a routing table it rebuilds every time it draws a screen. That is also why a stray click from a screen the player has since navigated away from does nothing: the token is simply not in the table anymore.

Type	What it does
`open_page`	Switches to another page in the same menu
`open_menu`	Opens a different menu entirely
`player_command`	Runs a command as the player
`console_command`	Runs a command as the console
`suggest_command`	Fills the player's chat box with a command, does not run it
`open_url`	Opens a link in the player's browser
`copy_to_clipboard`	Copies text to the player's clipboard
`close`	Closes the dialog
`message`	Sends a chat message, only visible once the dialog is closed
`notice`	Draws a line of text on the menu itself, where the player is already looking
`sound`	Plays a sound to the player, with `volume` and `pitch`

buttons:
  - id: save-chat
    label: '<aqua>Save</aqua>'
    actions:
      - type: notice
        value: '<aqua>Chat settings saved.</aqua>'
      - type: sound
        value: 'minecraft:ui.button.click'

The shorthand form works for a single action with no extra fields:

actions:
  - 'open_url: https://discord.arrowtan.cc'

notice, not message, is what a save button wants. Chat sits behind the dialog and cannot be read until the menu is closed, so a button that only sends a chat message reads as a button that did nothing at all.

Client side actions

suggest_command, open_url and copy_to_clipboard need a click the client can carry out on its own. When a button's whole action list is exactly one of these three, DialogForge builds it as a static client side action instead of routing the click through the server, which is what lets a link open while the menu stays on screen. Mixed into a longer list, or on a button that also carries require, they run server side instead and the player gets a clickable chat line they can only use once the menu is closed.

The Open Discord button on the shipped rules menu is one of these. Its only action is an open_url, so the browser opens and the menu is still there when the player comes back:

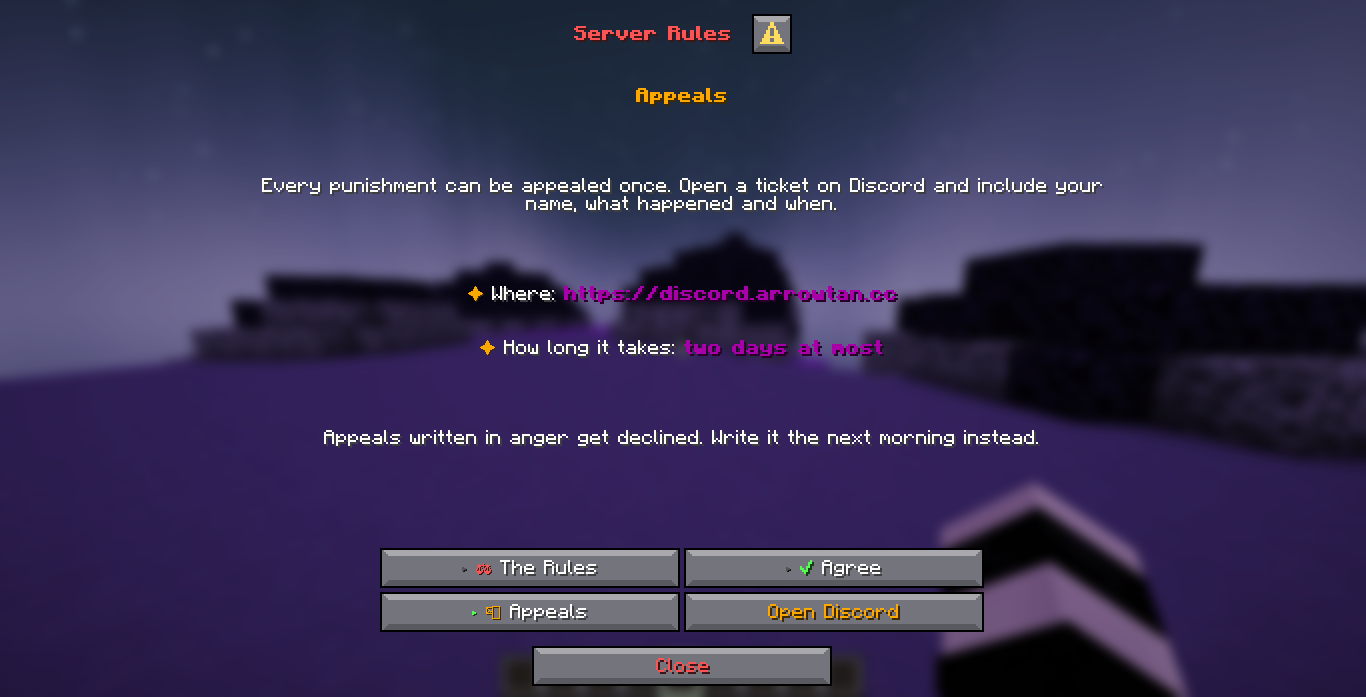

The Appeals page of the shipped rules menu: a paragraph about appealing once, two bullet lines giving the Discord link and how long it takes, the category buttons The Rules, Agree and Appeals, a page button reading Open Discord, and a Close button.

Conditions

Two keys, read the same way. if: on a single action skips that action for players whose answer does not match. require: on a whole button stops it running at all, and shows menu.requirement or the button's own require-message instead.

buttons:
  - id: confirm
    require:
      accepted: 'yes'
    require-message: '<red>Tick the box first.</red>'
    actions:
      - type: message
        value: '<green>Thank you.</green>'
      - type: console_command
        command: 'cinematic play %player_name%'
        if:
          cinematic: watch

Both are checked against the input's own answer, so a toggle with on-true: watch is matched by watch and by the literal true, never by skip. A button carrying require is never built as a static client side action, since the server has to see the click to refuse it.

DialogForge warns at load, per menu, when an if: or require: block names a key that is not an input on that page, or a value the input can never hold, so a typo shows up in the console rather than as a button that silently does nothing.
